Installation:
How to Fix Rainscreen Elements

Rainscreen cladding systems – otherwise known as timber slats or screening, are becoming increasingly popular as form of façade

Typically rainscreen systems use multiple layers of waterproof and protective materials located behind an open jointed timber cladding.

The layers behind help to ensure the building wall is protected from the elements and is built to last.

Rainscreen cladding can be utilised in both renovations of older buildings and in new builds. It provides a sustainable and efficient way to bring a sleek timber façade to any project.

Rainscreen cladding is suitable for both small and larger commercial projects and allows architects to utilise it in many different ways.

A rain screen system is almost always custom designed around the building it will be used on.

Common rainscreen fixing systems include:

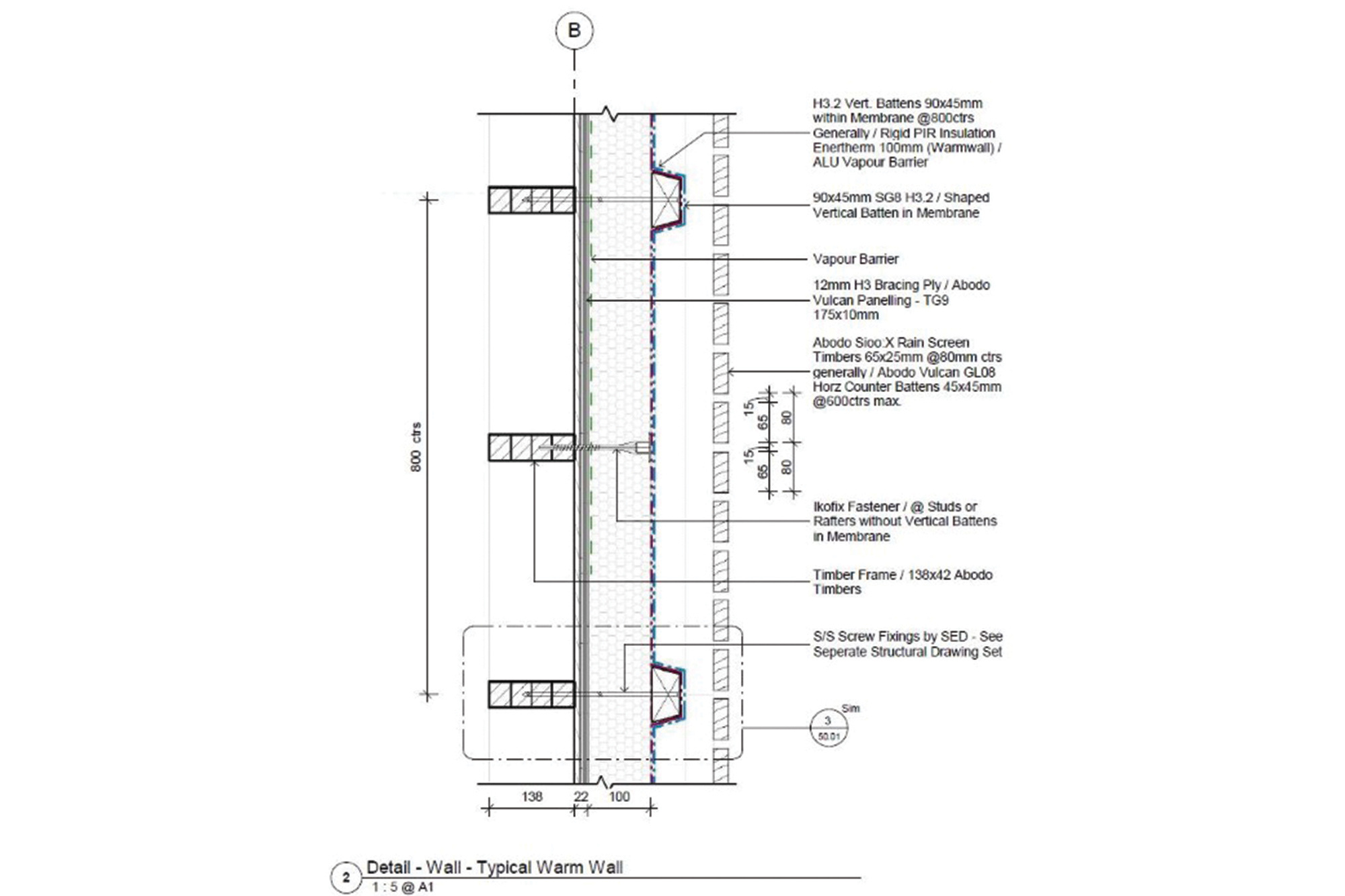

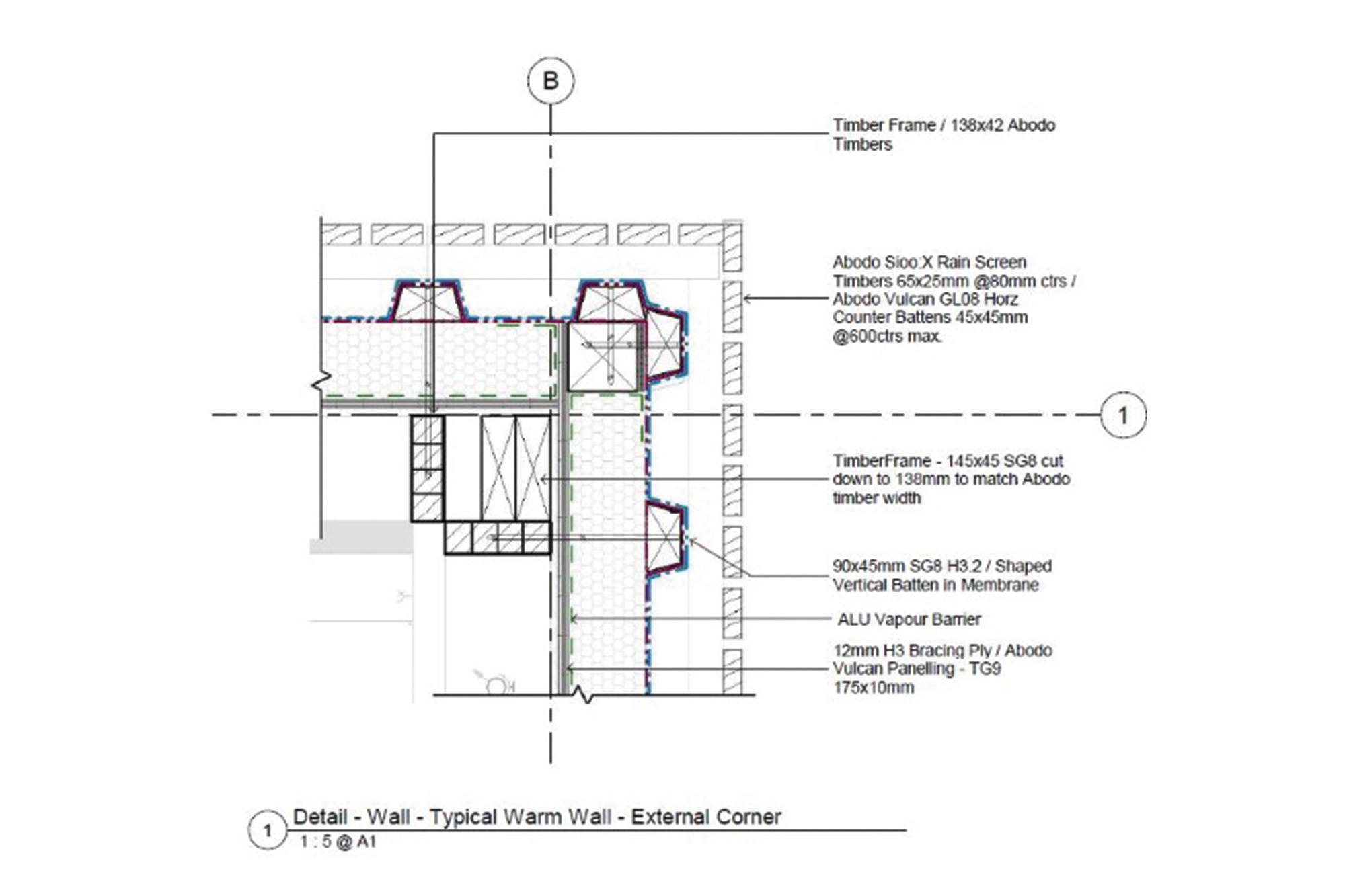

Warm wall system

Insulation and moisture membrane is fixed on the outside of the structure, with a timber cavity batten installed under the membrane as a fixing point.

Image credit - Assembly Architects

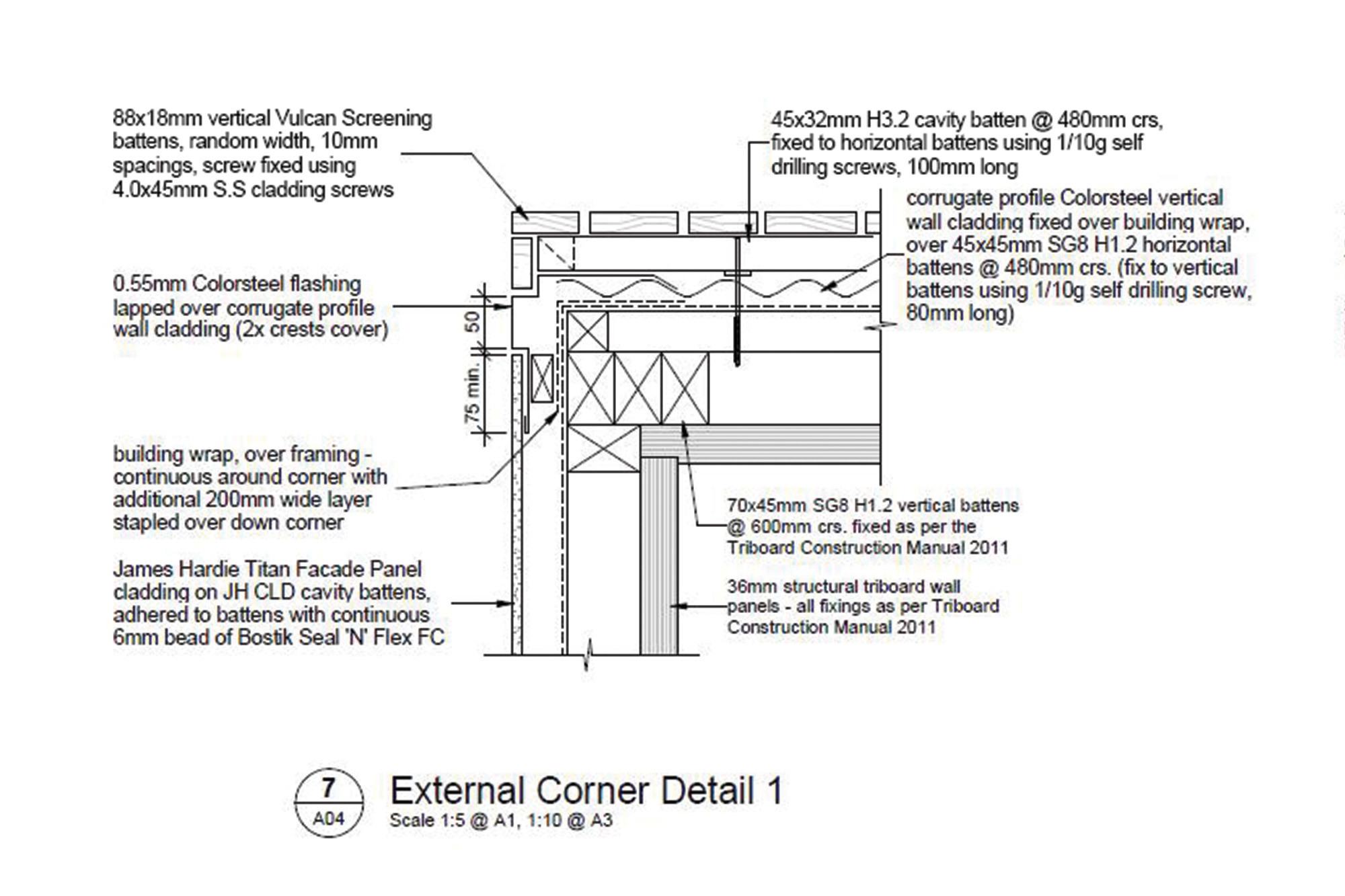

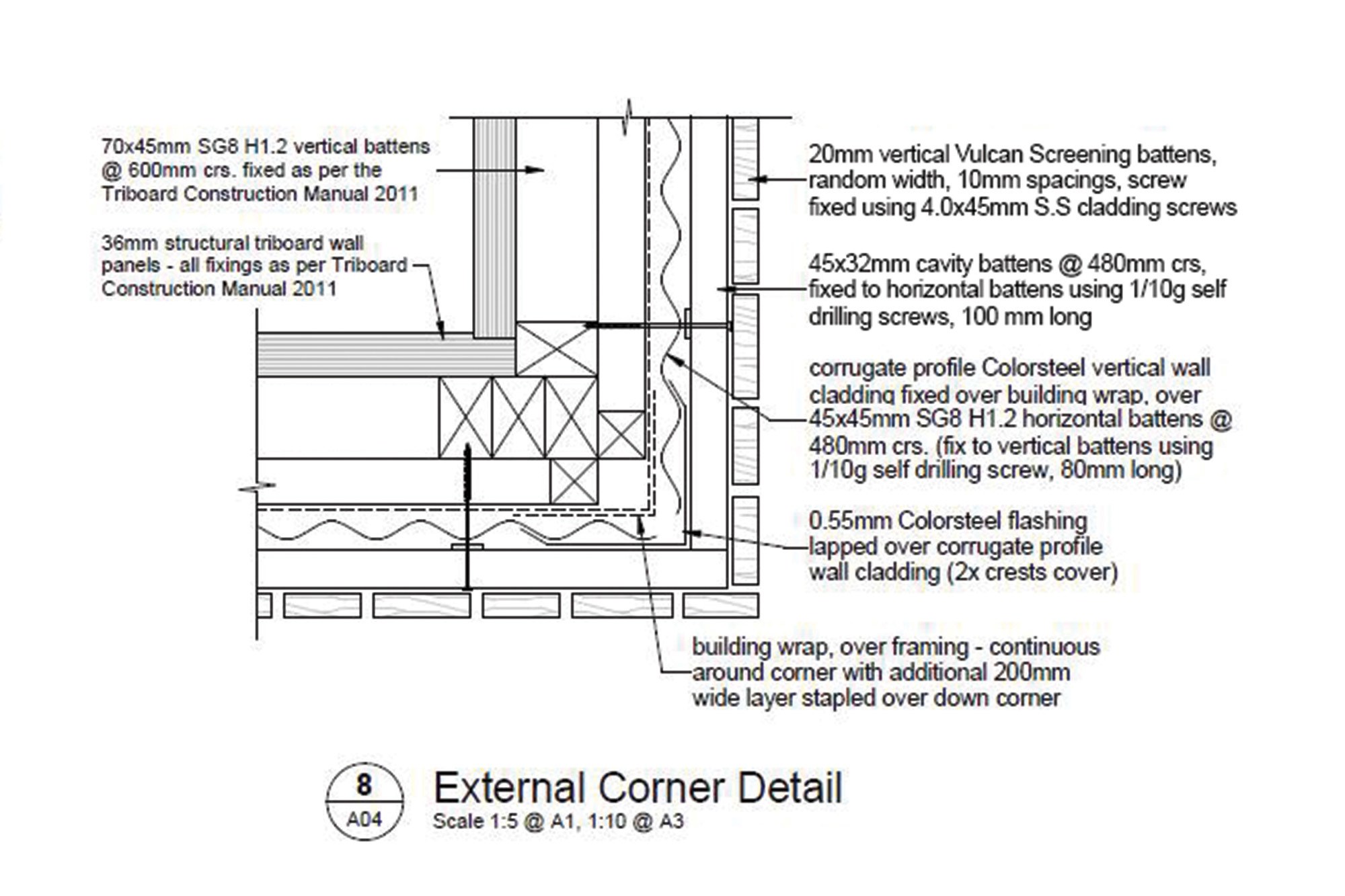

Corrugated steel backer

Corrugated steel roofing is used as a weatherproof backer, with cavity batten as fixing point.

Image credit - Modbox

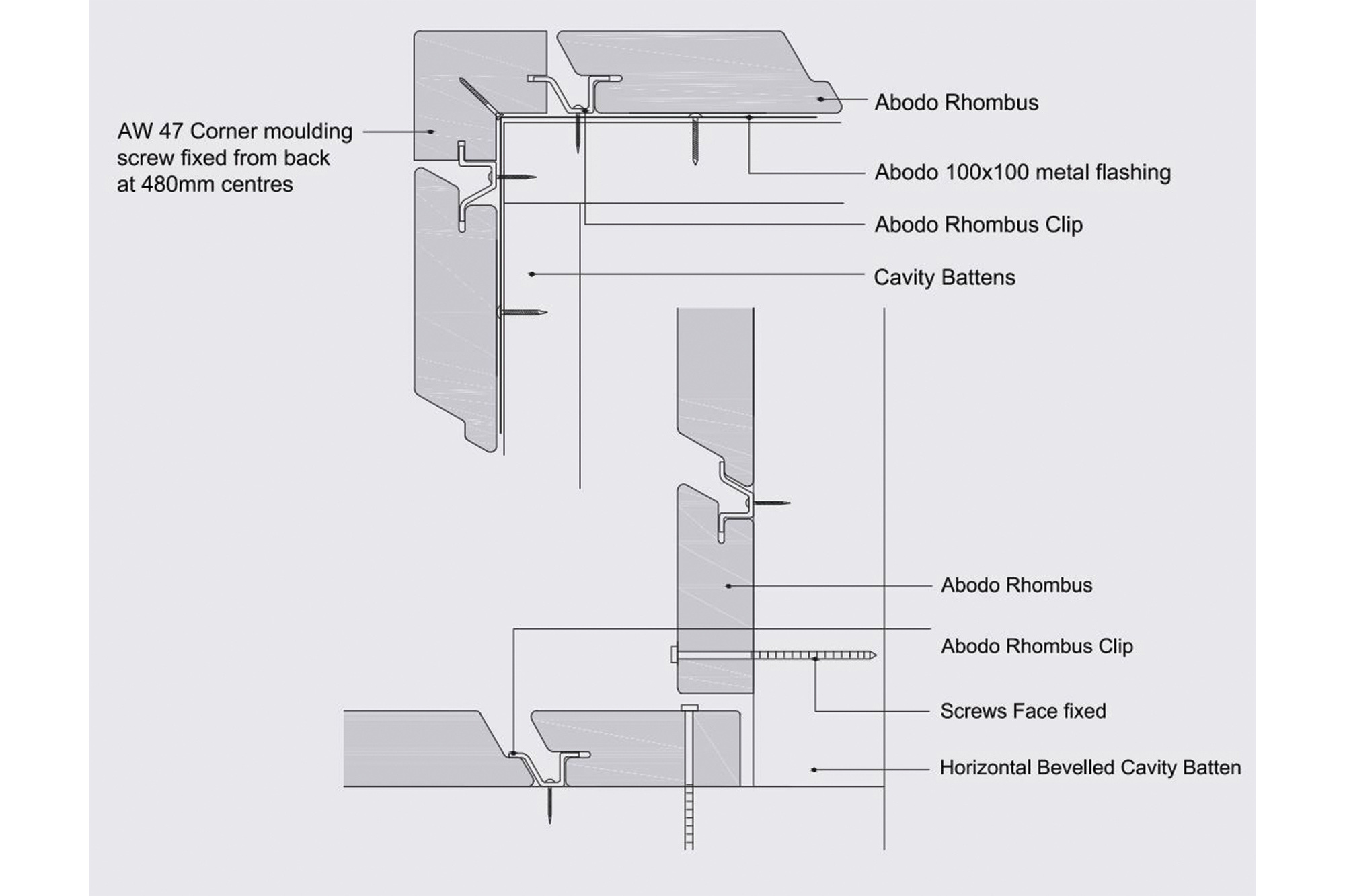

Clip system

An elegant hidden fixing can be achieved using Abodo’s Vulcan Rhombus Clip Screening onto a timber cavity batten – suitable for vertical and horizontal applications.
